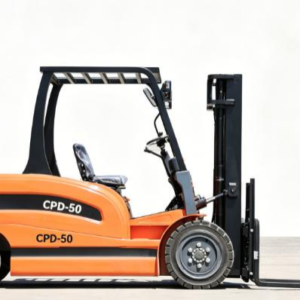

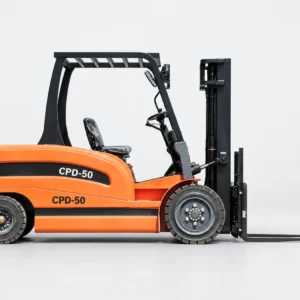

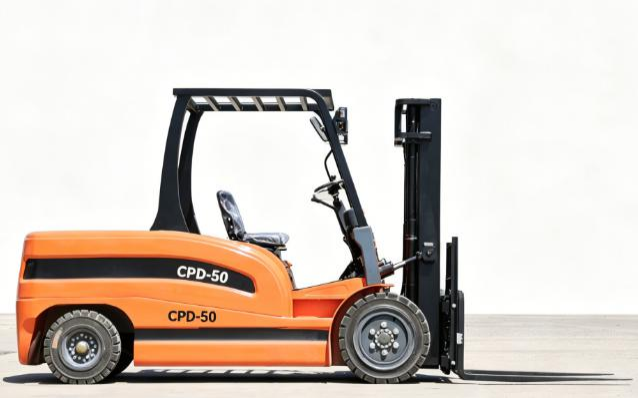

5-Ton Electric Forklift
Share your working conditions for model selection.
01
Built for Daily Material Handling
02
Technical Specifications
Confirm the final configuration with our team.
Full Product Configuration
The 5-ton electric forklift is listed with an 80V electric system, a 3m lift height and hydraulic power steering. The product specifications include solid tyres and forged forks. Review the load, mast and charging requirements for your handling site, and confirm the selected configuration before ordering.
Specifications and Configuration
- 5T Electric Forklift
- dimensions (L×W×H): 3100mm×1200mm×2100mm (excluding forks) / 4300mm×1200mm×2100mm (including forks)
- weight: 6000kg
- lift height: 3m (customizable)
- heavy-duty steel plate body
- 80V system
- equipped with headlights, turn signals, brake lights, running lights, instrument panel, and electric horn
- 404 floating cast steel front axle and Heli heavy-duty steel plate rear axle
- solid tires (front: 28*9-15, rear: 650-10)
- handbrake + hydraulic braking system
- reinforced dual hydraulic lift cylinders
- 1200mm forged forks
- 16000W/13000W motors
- 160# national standard steel mast
- hydraulic power steering
- 2.7m turning radius / 180° steering angle
- 6–8 hour operating time
- 3–4 hour charging time
- 20° gradeability.
